Color Coated Steel Coil

Color Coated Coil is a flat steel product on which protective decorative paint is applied. ... Organic coated galvanised steel is corrosion-resistant, has excellent mechanical properties and can be formed, profiled or stamped.

Classification ：

PPGL

+86 15153177053

admin@sdlensergroup.cn

E-mail

Related Products

Online Message

Product Details

NAME	Color Coated Steel Coil
Base Material	Cold-roll Steel Sheet Galvanized Steel Sheet
Thickness	0.12-0.8mm
Width	10-1250mm
Zinc Coating	30-275g/m2
Test	BV-SGS-Mtc
Grade	SGCC Dx51d, SPCC, CGCC
Package	Standard Export Package(Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected, one pallet about 3 tons)
MOQ	1 Tons
PAYMENT TERMS	T/T L/C and Western Union etc
Shipment	By 20GP,40GP,40HQ container or bulk vessel
Sample	Free Samples available
Special Design	OEM Availablem, Folow the customer's requirement

彩涂镀铝锌钢卷 Color coated aluminum-zinc steel coil
	ASTM A755M-03	EN10327-2004	JIS G 3322:2012
普通材质Ordinary material	CS	DX51D+AZ	CGLCC
建筑用材timbering	SS GRADE 230	S220GD+AZ	CGLC340
	SS GRADE 255	S250GD+AZ	CGLC400
	SS GRADE 275	S280GD+AZ	CGLC440
	SS GRADE 340	S320GD+AZ	CGLC490
	SS GRADE 550	S350GD+AZ	CGLC570
		S550GD+AZ
彩涂镀锌钢卷Color coated galvanized steel coil
	ASTM A755M-03	EN10327-2004	JIS G 3312:2012
普通材质Ordinary material	CS	DX51D+Z	CGCC
建筑用材timbering	SS GRADE 230	S220GD+Z	CGC340
	SS GRADE 255	S250GD+Z	CGC400
	SS GRADE 275	S280GD+Z	CGC440
	SS GRADE 340	S320GD+Z	CGC490
	SS GRADE 550	S350GD+Z	CGC570
		S550GD+Z
SPECFICATION
		PRE-PAINTED GALVANIZED STEEL COIL	PRE-PAINTED ALUZINC STEEL COIL
厚度thickness		0.15MM--1.50MM(BMT)	0.15MM--1.50MM(BMT)
宽度width		900MM-1340MM	900MM-1340MM
锌层zinc coating		30g/m2-275g/m2	30g/m2-185g/m2
基材base material		镀锌钢卷Galvanized steel coil	镀铝锌钢卷Aluminum-zinc steel coil
涂层coating		POLYESTER(PE),SMP,HDP,PVDF
颜色colour		RAL SCALE
卷重Reel weight		3MT-7MT
卷内径Coil inside diameter		508MM OR 610MM
* HARD QUALITY GALVANIZED STEEL(HRB75-HRB90) AVAILABLE ON CUSTOMER'S REQUEST

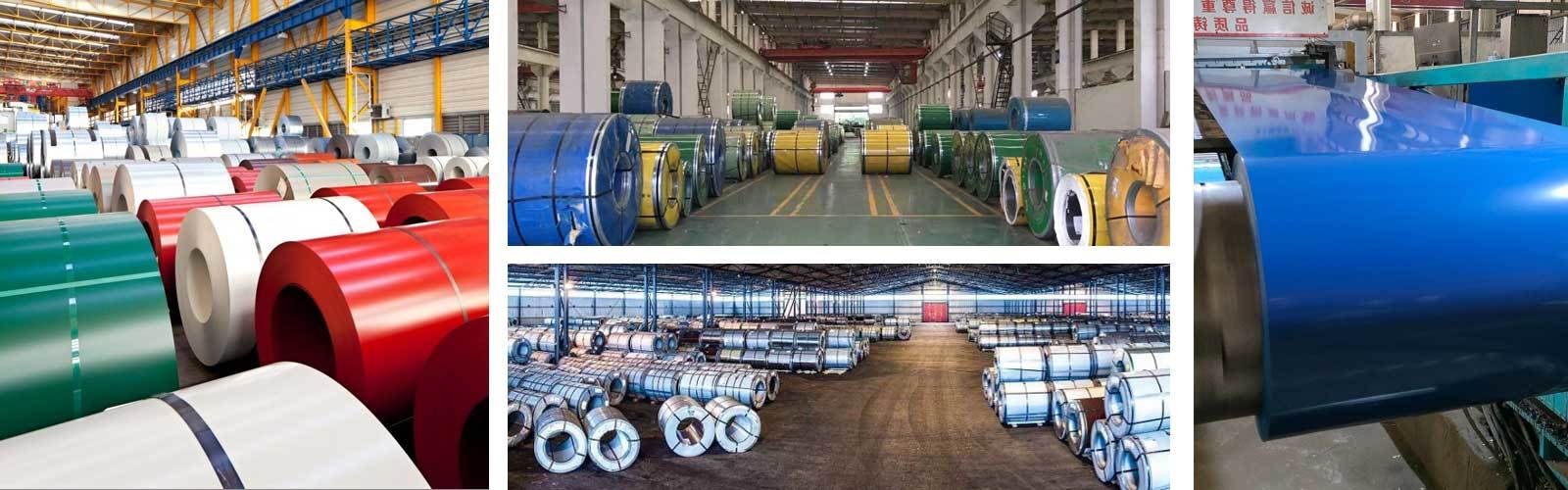

Factory
